An HDMI matrix is a high-definition video signal switcher that can route multiple HDMI input sources to multiple HDMI displays. It is widely used in home theaters, conference rooms, classrooms, and other scenarios. Below is a step-by-step guide on configuring an HDMI matrix.

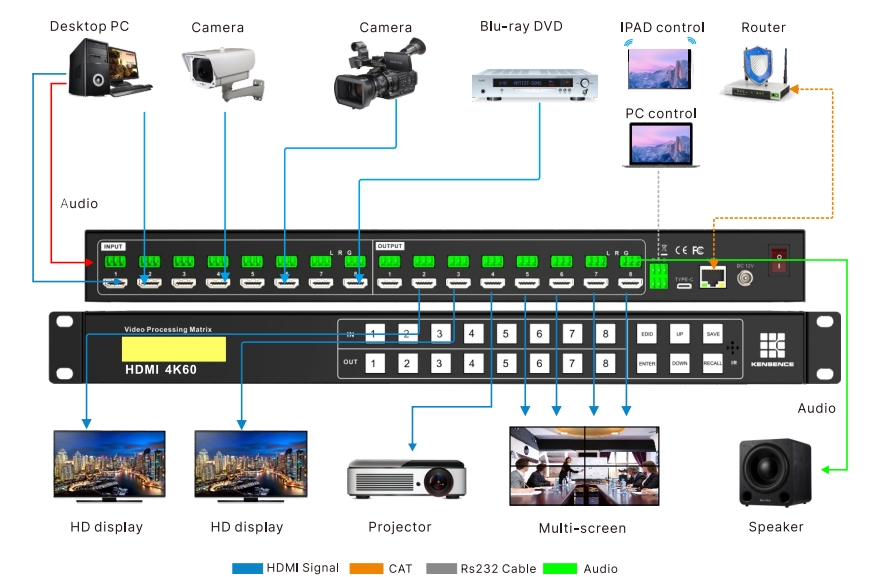

Kensence 4x4 8x8 4k60Hz Hdmi matrix

1. Determine the Number of Input and Output Ports

The number of input and output ports depends on actual needs. Generally:

More input ports allow connection to more signal sources.

More output ports allow connection to more displays.
Select the appropriate HDMI matrix based on your requirements.

2. Connect HDMI Sources and Displays

Connect HDMI sources (e.g., Blu-ray players, gaming consoles) to the input ports and displays (e.g., TVs, projectors) to the output ports.
⚠ Note: Ensure HDMI versions match to avoid compatibility issues.

3. Configure the HDMI Matrix

Configuration can be done via:

• Remote control

• Front-panel buttons
  Steps:

Select the input source to switch.

Select the output display(s).

For multi-display output, enable multiple output ports.

4. Test the HDMI Matrix

After setup, test the switching function:

Switch between different inputs and outputs.

Verify video/audio stability (especially for 4K HDR).

Conclusion

HDMI matrix configuration is straightforward if you follow these steps. Pay attention to:

Compatibility between devices.

Port availability for future expansion.
