Introduction

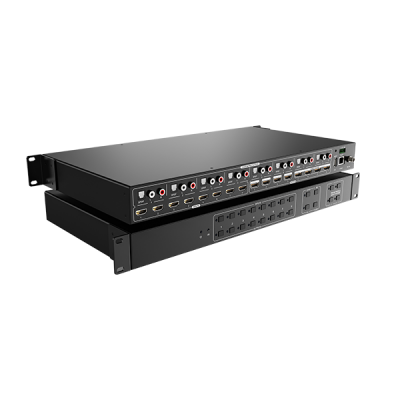

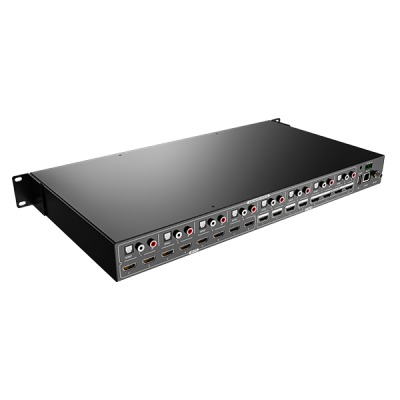

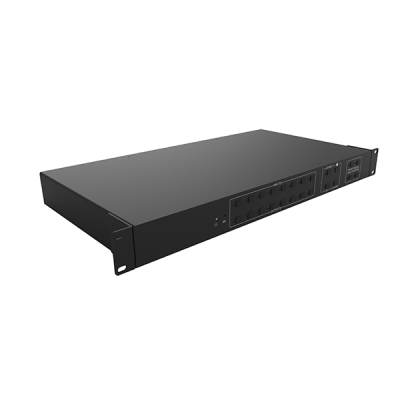

UHDW-HDMI44/88-PRO It is a multi-functional ultra-high-definition matrix control all-in-one machine,with the function of 4*4/8*8 matrix switcher, and supports 4 screen/8 screen splicing display. It is a high-performance, high-bandwidth intelligent switching distribution device specially designed for ultra-high-definition video display systems. Each HDMI channel of the matrix supports the acquisition and display of various resolution formats of 4K@60Hz and below, as well as common 3D formats. Built-in intelligent EDID control, can intelligently read and write the display device information, 8 input channels support independent EDID and can customize the resolution format of each output channel, which can be applied to any high-definition digital video system to meet the user's ultra-clear experience Demand.
Features
UHDW-HDMI44/88-PRO Features
HDMI Inputs and Outputs: Accommodates 4 or 8 HDMI inputs and outputs for versatile connectivity.
Matrix Switching Capability: Enables the matrix switching of 4 or 8 HDMI signals seamlessly.
Multi-Control Options: Offers control through front panel buttons, an IR remote, RS232 commands, and an IP (LAN) interface.
High-Resolution Support: Supports resolutions up to 4Kx2K at 60Hz and 1080p 3D, with each output channel allowing independent resolution configurations.
Versatile Control Protocols: Integrates various control protocols for smooth compatibility with different central control systems. Remote engineering support and custom feature development are also available.
Memory Functionality: Features a powerful memory function to store and recall multiple preset switching modes easily.
Power-Failure Protection: Includes a power-down memory function that protects settings during power failures.
Seamless Switching: Supports ultra-clear and seamless switching between inputs.
Firmware Upgradeability: Allows USB firmware upgrades for easy updates.
Real-Time System Monitoring: The LCD display shows real-time system status for user convenience.
HDMI and HDCP Compliance: Complies with HDMI 2.0 and HDCP 2.2 standards, with backward compatibility to previous versions.
Long-Distance Signal Transmission: Successfully transmits 4Kx2K at 60Hz 4:4:4 signals over distances of 5 meters or more.
HDCP Management: Supports input signal status detection and manages HDCP on outputs via command control.
Video Wall Functionality: Capable of supporting video wall (LCD) splicing for larger display setups.
Specification
| Model | UHDW-HDMI44-PRO | UHDW-HDMI88-PRO | UHDW-HDMI1616-PRO |
| Specification | Input/output each supports 4 channels | Input/output each supports 8 channels | Input/output each supports 16 channels |
| Resolution | The highest resolution can reach 4K@60Hz(3840*2160) | ||
| Input Signal | All-Digital HDMI Signal + Pho-enix Terminal Audio Signal | ||
| Output Signal | All-Digital HDMI Signal + Pho-enix Terminal Audio Signal | ||
| HDMI version | HDMI 2.0,support 3D TV | ||
| Digital content | HDMI 2.0,support 3D TV | ||
| Hot swap | Plug and play, easy to install, support hot swap | ||
| Input line | The input has a built-in equalizer up to 30 m | ||
| Output line length | ≤15 m | ||
| Input / output ports | HDMI interface Type A 19-pin connector | ||
| External power supply | 110~220 V AC | ||
| Working environment | Storage and use temperature: -20°~+70°C; Humidity: 10%~90% | ||
| AC adapter | DC 12V | AC 100V~220V | AC 100V~220V |
| Weight | 4.3KG | 4.5KG | 7.5KG |
| Power | 22W | 100W | 200W |
| Size(WxDxH) | 1U(480mmx190mmx44mm) | 1U (480mmx190mmx44mm) | 2U(480mmx190mmx88mm) |
