HDMI-4100PLUS 4K60Hz HDMI Multiviewer Features

4-Channel HDMI 2.0 Input / 1-Channel HDMI 2.0 Output Seamless Switching & Multi-View Processor
This device can display up to 4 signal sources simultaneously on a single large screen. Users can conveniently operate it via front panel buttons, remote control, or serial commands.

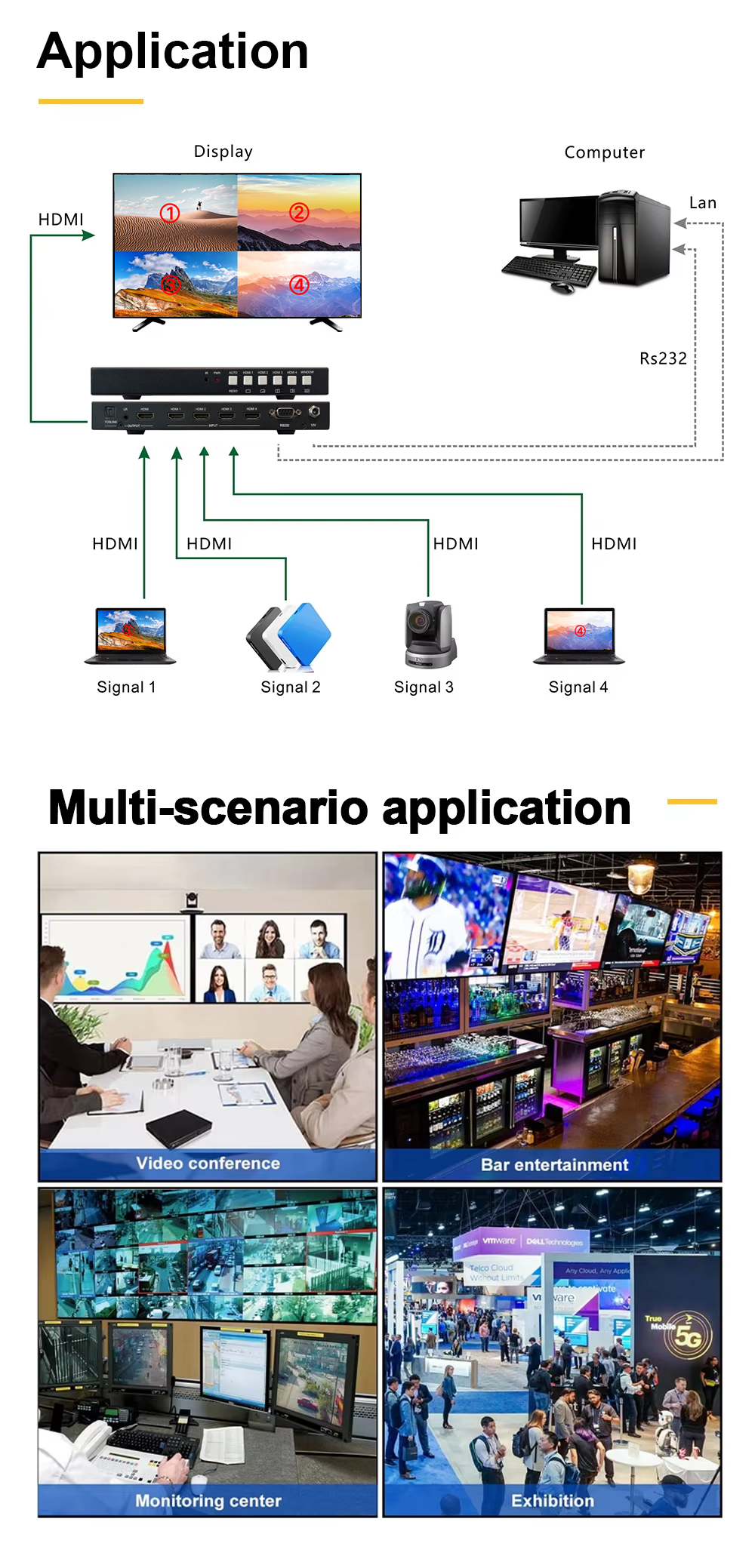

HDMI-4100PLUS 4K60Hz HDMI Multiviewer Applications:

• Home Theater

• Video Conferencing

• Security & Surveillance

• Digital Signage & Advertising

• Education & Training Systems

• Financial Analysis

• Esports Arena

• Medical Imaging

•


HDMI-4100PLUS 4K60Hz HDMI Multiviewer Key Features:

• 4× HDMI Inputs, 1× HDMI Output

• Supports HDMI 2.0, HDCP 2.2, with max resolution up to 3840×2160@60Hz

• 5 Multi-Window Modes:

       SINGLE (Full-screen)

       PIP (Picture-in-Picture)

       PBP (Picture-by-Picture)

      3×WIN (3-Window Split)

      4×WIN (4-Window Quad Split)

• Seamless switching for single-window mode, fast switching for multi-window layouts

• Audio Control:

            Volume adjustment

            Independent audio source selection

            Supports LPCM, AC3, Dolby Digital+, DTS, DTS-HD, up to 7.1-channel audio

• OSD Menu Navigation for intuitive configuration

• EDID & HDCP Management:

            Custom EDID settings

             HDCP mode selection

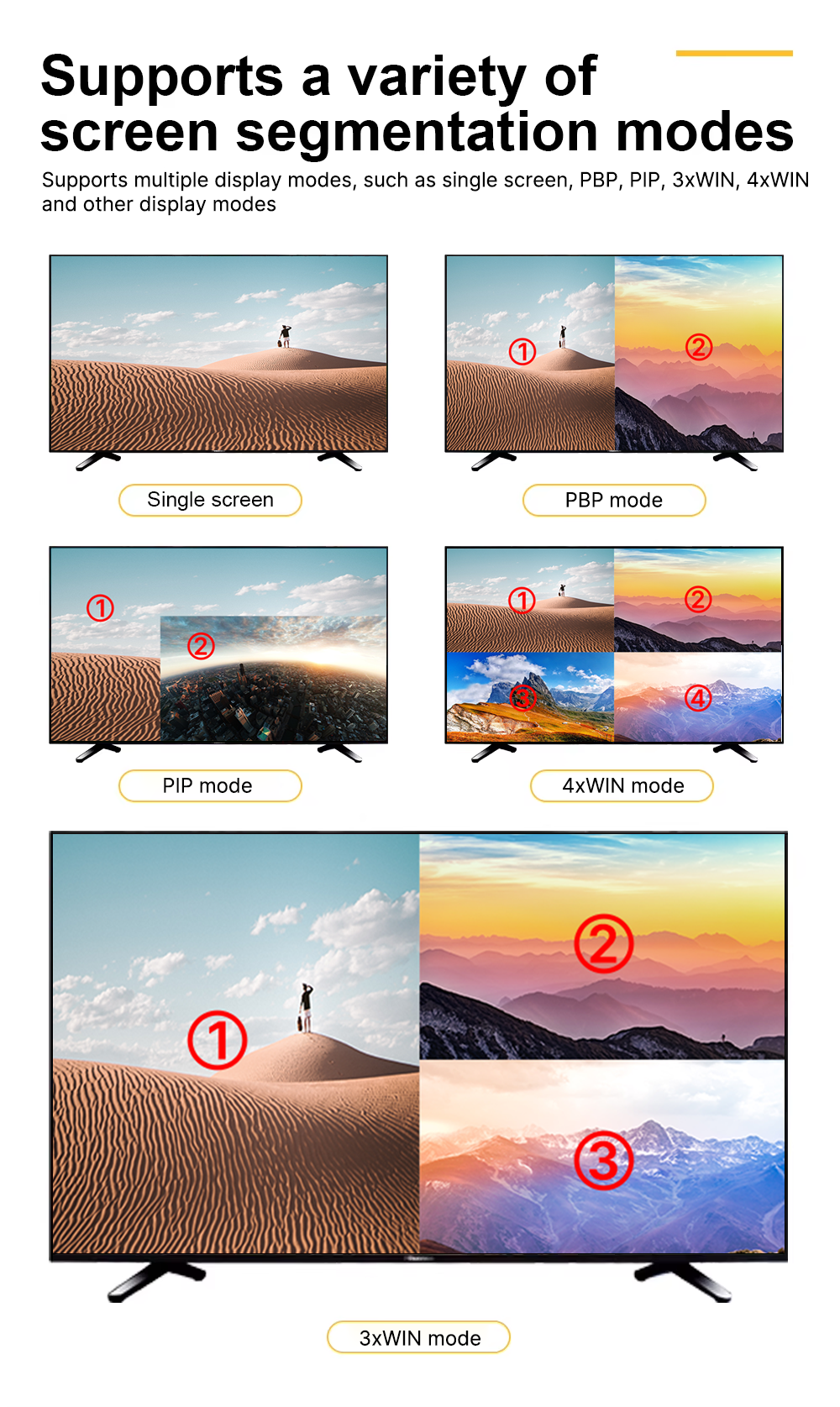

Multi-window

Supports 5 multi-window modes
SINGLE, PIP, PBP, 3xWIN, 4xWIN

For different multi-window modes, users can perform various operations
SINGLE: Source selection

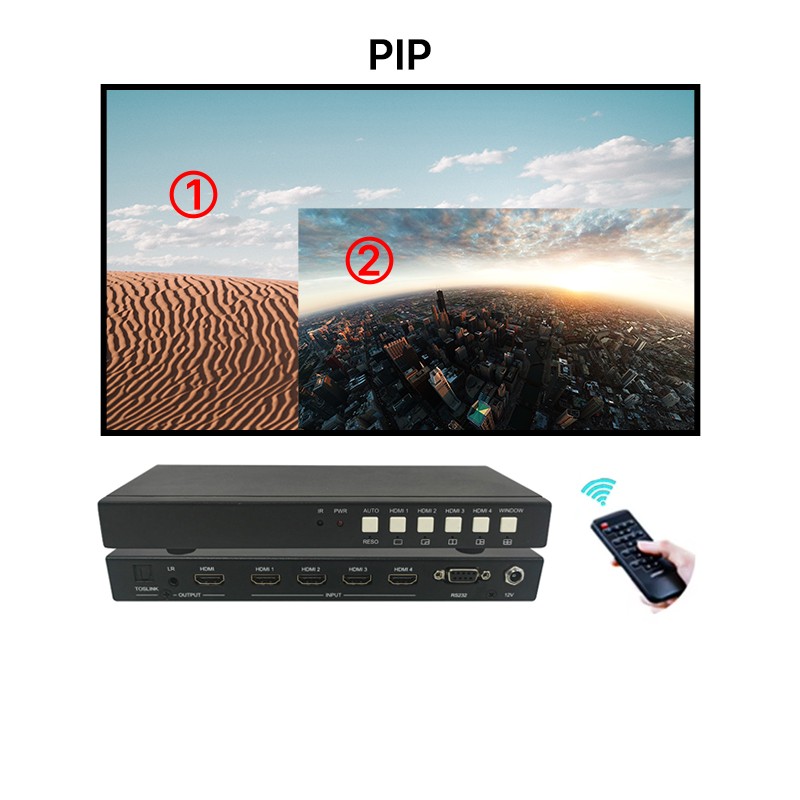

PIP: Source selection, sub-window size and position
PBP, 3xWIN, 4xWIN: Source selection, display ratio, mode selection

The default layout is as follows

Users can choose via serial command or OSD menu

For inquiries regarding detailed specifications, pricing, or technical support services for the HDMI-4100PLUS 4K60Hz high-definition multi-screen display system, our professional consultants are at your service.
